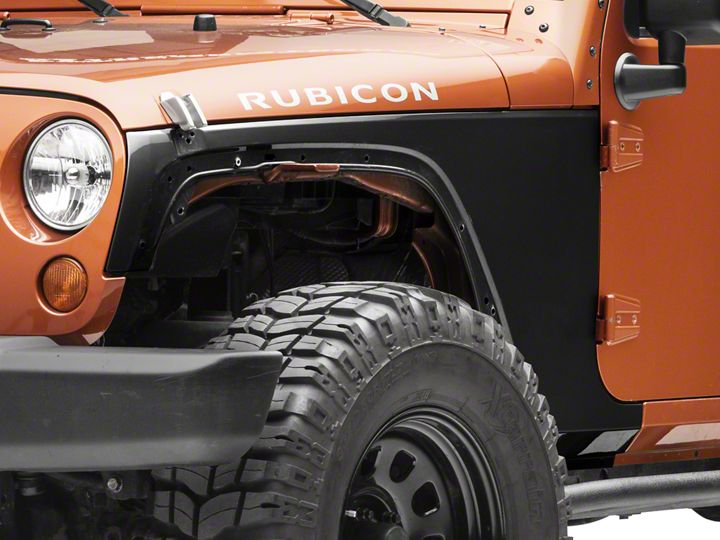

How to Install Replacement Steel Fender - Left Front (07-18 Jeep Wrangler JK) on your Jeep Wrangler
Installation Time
iii hours
Tools Required
- 10mm Socket
- 13mm Socket/Wrench
- Ratchet
- 19mm Socket (if spare tire is mounted)
- Pliers
- Panel Clip Removal Tool
- T30 Torx Wrench
- T45 Torx Wrench
- Small-scale Flathead Screwdriver
- A friend (optional)
Shop Parts in this Guide
- Fender; Front Driver Side (07-eighteen Jeep Wrangler JK)
Notation: This guide is for installing the Crown Automotive Replacement Steel Fender - Left Front (J113993) on the passenger side of a 2007-2017 Jeep Wrangler. Read all instructions carefully earlier starting.
Before
After
1. If you choose to have the new fender painted, it may be easier to have it painted before installation. You lot can pigment information technology yourself or have a professional pigment it. We chose to have ours painted at a local body store.
2. Park Jeep on level ground and use parking restriction. Remove the left door then you tin admission the bolts for the fender.
3. Prop the hood open up. Using a 10mm wrench, disconnect the battery, as pictured below:
four. Using a console prune removal tool, remove the half dozen blackness plastic clips located on the acme of the grille, equally pictured below:
5. Disconnect the front end turn point wiring on both sides of the Jeep.
6. Remove grille and set aside carefully.
7. The aftermarket fenders on this Jeep apply a 5/32 Allen wrench, but for factory fender bolts, use a 10mm wrench to remove all fender bolts, then pull the fender away from the Jeep. It will make popping noises as the plastic clips are disconnected.
viii. Remove 13mm outer fender support nut.
9. Remove steps or stone rail (if applicable) – there will exist 4 (four) 10mm bolts and two (2) 13mm bolts. You may want to enlist the assistance of a friend to remove information technology from the Jeep so information technology does non fall.
x. Shut hood. Open wiper covers and unbolt one (1) 13mm bolt from each wiper. A flathead screwdriver will help yous pry the wiper arm off the tab.
xi. Remove four (4) cowl bolts using a T30 Torx wrench and remove 4 plastic clips with the panel prune removal tool.
12. Remove left window corner using a T45 Torx wrench for six (6) bolts.
13. Using a 10mm socket, remove all bolts from driver side fender.
xiv. Remove hood latch from old fender using a 13mm socket on one (i) bolt. Transfer hood latch to new fender.
fifteen. Clean off whatsoever mud yous discovered with a moisture rag to make installation easier.
16. Align new fender to Jeep. Reinstall all 10mm bolts.
17. Transfer all clips from sometime fender to new fender.
18. Reinstall cowl with iv (4) T30 Torx bolts and reinstall plastic clips. Reinstall wipers with one (one) 13mm commodities in each wiper arm.
19. Reinstall fender flares with bolts and plastic clips (as is applicable to your fender flares).
20. Reinstall steps or rock rail with four (iv) 10mm bolts and two (two) 13mm bolts.
21. Reinstall grille by pushing firmly into identify and reinstalling the plastic clips. Reattach plow signal lighting.
22. Once all the removed parts have been replaced, reconnect the battery, close the hood, and savour your crisp new fender!
Installation Instructions Written by ExtremeTerrain Customer 8/8/2018
